Detalles de la compañía
CEP Elevator Products ( China ) Co., Ltd.
CEP Elevator Products ( China ) Co., Ltd.
Acondicionador de aire de elevación de 60Hz,Ascensor aire acondicionado refrigerante R22,Sistema de aire acondicionado de ascensor
86-186-06587272
Tipo de Pago: | T/T |
---|---|
Incoterm: | CFR,CIF,EXW,CPT,DDU |
Cantidad de pedido mínima: | 4 Piece/Pieces |
Modelo: 60Hz Refrigerant R22
Marca: Aire acondicionado
Warranty Service: 2 Years
After-sales Service: Online Technical Support
Engineering Solution Capability: Total Solution For Projects
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Supermarket
Design Style: Scandinavian, Japanese, French, Mediterranean, European, Asian
Place Of Origin: China
Refrigerant: R22
With CE Approval: YES
NO Water Drips Design: YES
Easliy Install & Dissembling: YES
Energy Saving: YES
Low Noise Operation: YES
Special Model AC110V/60Hz: As An Option At Extra Cost
Voltage/Frequency: AC220-230V ~ 60Hz
Directed Mainly For: Taiwan, Japan, Brazil, Philippines, USA
Paquete: Estuche de madera contrachapada de embalaje de exportación estándar internacionales
transporte: Ocean,Land,Air,Rail
Lugar de origen: Hecho en china
Apoyo sobre: Powered by CEP Elevator Products
Certificados : EN81, CE, Gost-R, SASO, VOC, KTL, UL, CSA
HS-Code: 8415101000
Hafen: Ningbo,Shanghai,Tianjin
Tipo de Pago: T/T
Incoterm: CFR,CIF,EXW,CPT,DDU

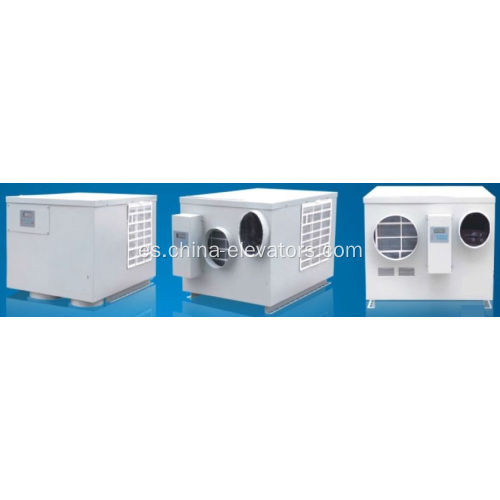

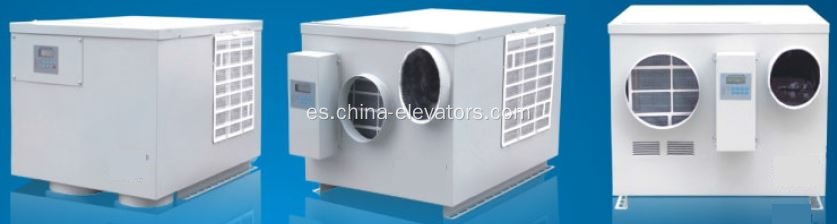

Refrigerador de aire acondicionado con elevador de 60 Hz R22
Part No. |
ACR-HH-25Z |
ACR-HH-D25Z |
ACR-HH-25QZ |
ACR-HH-D25QZ |
ACR-HH-32QZ |
ACR-HH-D32QZ |
Rated Cooling Capacity(W) |
2500 |
2500 |
2500 |
2500 |
3200 |
3200 |
Rated Heating Capacity(W) |
/ |
2200 |
/ |
2200 |
/ |
2200 |
Air Flow (High/Low, m3/h ) |
420/350 |
420/350 |
420/350 |
420/350 |
560/450 |
560/450 |
Rated Cooling Input Current(A) |
4.3 |
4.3 |
4.3 |
4.3 |
5.8 |
5.8 |
Rated Heating Input Current(A) |
/ |
10 |
/ |
10 |
/ |
10.3 |
Rated Cooling Input Power(W) |
950 |
950 |
950 |
950 |
1210 |
1210 |
Rated Heating Input Power(W) |
/ |
2200 |
/ |
2200 |
/ |
2255 |
Noise dB (A) |
≤53 |
<53 |
<55 |
|||
Voltage/Frequency |
AC220-230V ~ 60Hz |
|||||
Refrigerant |
R22 |
|||||
Water Proof Level |
IPX4 |
|||||
Insulated Voltage Grade |
I Grade |
|||||
Compressor Protection |
Overheat protection; Over current protection; Delay startup protection |
|||||
Control Mode |
Standard: Program control (automatically ) +infrared remote control (Manually) Remote control (automatically ) +infrared remote control (Manually) as an option at extra cost |
|||||
Dimensions (L×W×H)mm |
615×455×435 |
545×455×435 |
640×570×510 |
|||
Weight(kg) |
39.5 |
40 |
38.5 |
39 |
59 |
59.5 |
For Elevator Load Capacity(kg) |
≤1350 |
≤1350 |
>1350 |
|||
Air Out, Air Return |
from bottom ,to bottom |
from front, to front |
from front ,to front |
Contamos con aire acondicionado de alta calidad para todas las principales marcas de ascensores y escaleras mecánicas.
para los elevadores OTIS, los elevadores ThyssenKrupp, los elevadores Schindler, los elevadores KONE, los elevadores Mitsubishi, los elevadores Fujitec, los elevadores Hitachi, los elevadores Toshiba, los elevadores Fuji, los elevadores Express, los elevadores Sigma, los elevadores LG, los elevadores Hyundai, los elevadores BLT, los elevadores CANNY, los ascensores SJEC, KOYO Elevadores
PRODUCTOS POR GRUPO : Componentes del ascensor > Ascensor aire acondicionado
